  • 2.2. Optimizer Alignment Panel
Alignment Status
Construction Sequence
Processing of horizontal alignments (curves, cross sections, overrides etc.) occurs in a sequence, referred to as the Construction Sequence.
      Figure: Construction Sequence
Processing a horizontal alignment can result in the creation additional reference features or corridor surfaces. These features and surfaces can be referred to in further alignment calculations.
Status Indicator
The Status Indicator checks and reports invalid relationships between horizontal alignments and reports warnings.

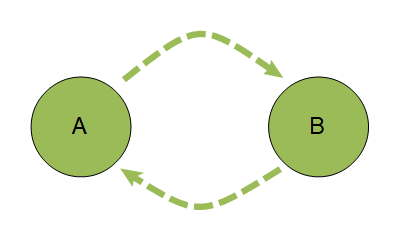

For example, suppose we have 3 horizontal alignments (H-Align_A, H-Align_B and H-Align_C).
